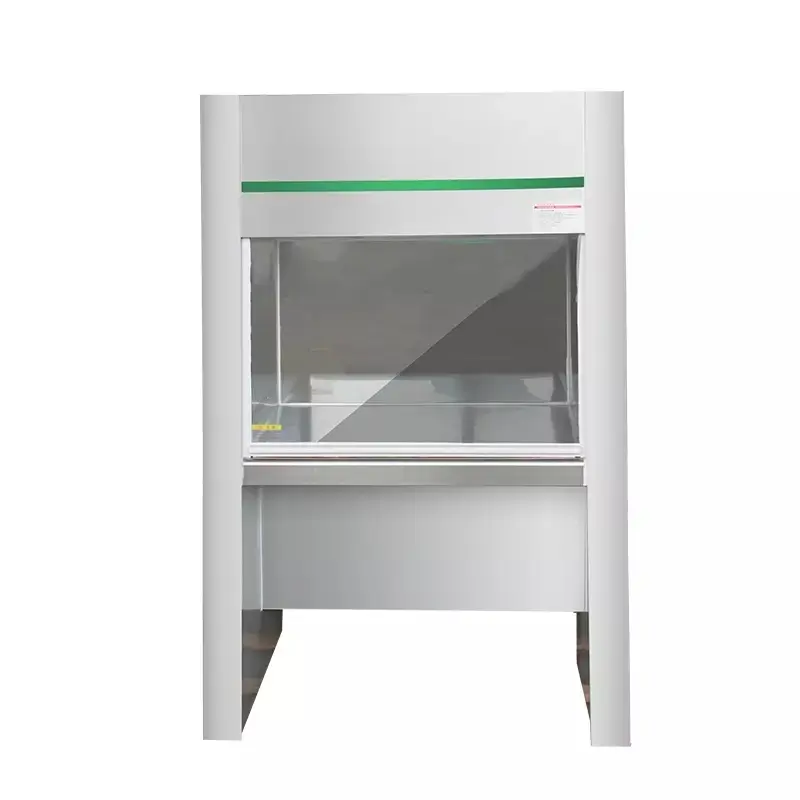

Vertical /Horizontal Flow Clean Bench

1.Vertical Laminar Flow Cabinets
Airflow: 0.45 m/s ±10% (ISO Class 3 workspace)
Applications: Microchip assembly, cell culture, media preparation
Lighting: 800 lux LED with dimming control

2.Horizontal Clean Benches
HEPA Efficiency: 99.999% @ 0.3μm (EN 1822 compliant)
Work Area: 1200mm(W) × 600mm(D) × 600mm(H)
Noise Level: ≤55 dB(A) at 1m

3.PCR Workstations (Specialized Models)
UV Sterilization: 30W dual lamps with motion sensor
Cross-Contamination Control: <5 particles/ft³ (≥0.5μm)

4.Modular Cleanroom Systems
Expandable Design: Multi-station configurations
Integration: Compatible with ISO Class 5-7 cleanrooms

Advanced Airflow Management
Centrifugal ECM blowers (50% energy saving)
Triple-stage pre-filters (G4+F9+HEPA)

Smart Monitoring System
Real-time particle counter (0.3/0.5/5.0μm channels)
Differential pressure sensors (±5% accuracy)

Durable Construction
304 stainless steel structure (Ra ≤0.6μm finish)
Anti-static work surface (106-109 Ω resistance)

✅ Ultimate Contamination Control
Unidirectional airflow (≤20% turbulence)
Sealed perimeter gaskets (IP54 rated)

✅ Energy Efficiency
35% lower airflow resistance vs conventional designs
Auto-sleep mode reduces power by 60%

✅ Global Compliance
CE/UL/ETL certified
Meets ISO 14644-1 & NSF/ANSI 49 standards

✅ Custom Configurations
Optional ULPA filters (99.9995% @ 0.12μm)
Ergonomic armrests or microscope mounts

⚡ Patented Airfoil Design
Perforated diffuser plate ensures ≤5% velocity variance
Low-turbulence intake plenum

Smart Safety Features
UV interlock prevents accidental exposure
Airflow failure auto-alert system

Validation-Ready
Built-in test ports for HEPA integrity checks
IEST-compliant velocity mapping reports

Through strategic partnerships with China's leading cleanroom technology providers, we integrate:
Aerospace-grade airflow sensors
Medical-grade stainless steel surfaces
10-year HEPA filter warranty – industry-leading protection

Certifications: ISO 9001, ISO 13485, GMP compliant

On-site airflow validation services
Multilingual operation interfaces (EN/ES/FR/AR)
⚡ 72-hour global spare parts dispatch

1、Biomedical Research
Cell Culture & Molecular Biology: Used to maintain sterile conditions during cell/tissue culture, DNA/RNA extraction, and PCR setup.
Vaccine Development: Ensures contamination-free handling of biological samples and reagents.

2、Pharmaceutical Manufacturing
Drug Production: Critical for aseptic processing of injectables, lyophilized powders, and sterile formulations.
Quality Control: Supports microbiological testing and sterility assurance of final products.

3、Electronics & Semiconductor Industry
Microchip Fabrication: Prevents dust/particle contamination during wafer cleaning, coating, or assembly.
Optical Component Assembly: Maintains ultra-clean environments for sensitive optical devices.

4、Food & Beverage Processing
Sterile Packaging: Used in aseptic filling of juices, dairy products, or baby formula.
Food Safety Testing: Reduces microbial interference during sample preparation for lab analysis.

5、General Laboratory Operations
Microbiology: Avoids cross-contamination during bacterial/viral culture or plating.
Chemical Synthesis: Provides clean airflow for handling volatile or sensitive reagents.
