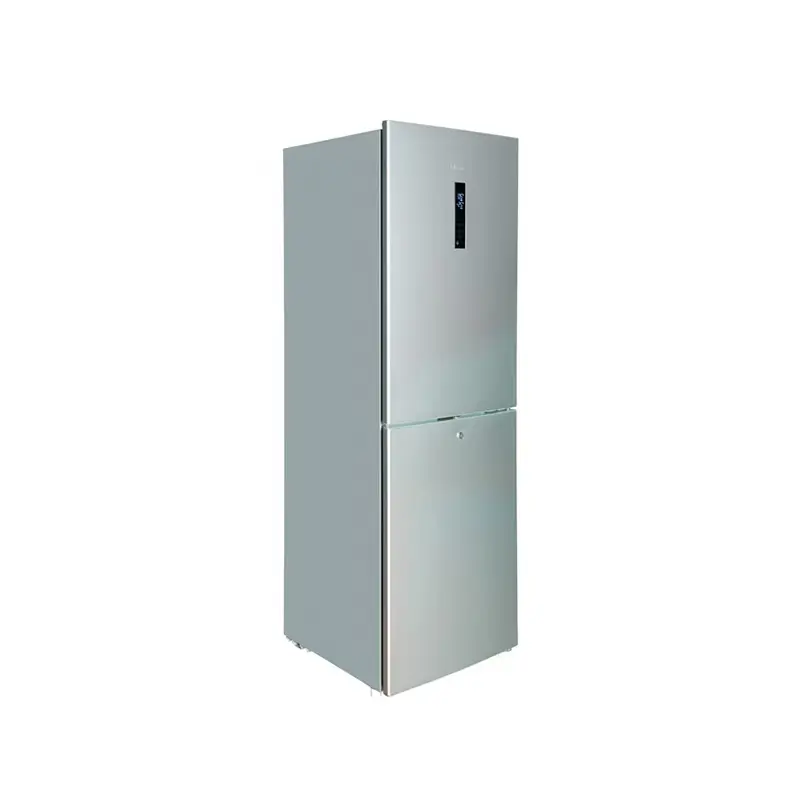

Freezer/Refrigerator
Product Portfolio
Medical Refrigeration Cabinets
Temp Range: +2°C to +8°C (±0.3°C uniformity)
Applications: Vaccine storage, reagent preservation, blood bank
Capacity: 300L to 1,600L (stackable modular design)
Compliance: Meets WHO PQS/ISO 13485 standards
Ultra-Low Temperature Freezers
Standard Series: -40°C (±1°C), 400L-800L
Deep Freeze Series: -86°C (±2°C), 600L-1,200L
Vapor Phase LN2 Backup: Optional hybrid cooling system
Pharmacy Refrigerators
Temp Stability: ±0.5°C with 24/7 temperature logging
Features: Glass door with anti-condensation heating
Security: FDA 21 CFR Part 11 compliant audit trail
Portable Cold Boxes
Holdover: 48hrs at +4°C (ambient 43°C)
Transport: IATA-compliant dry shipper design
Core Technologies
Advanced Cooling System
Cascade refrigeration with eco-friendly R290/R600a
Dual redundant compressors (Danfoss/Secop)
Smart Temperature Management
5-inch TFT touchscreen with 365-day data storage
GSM remote alerts for temperature deviations
Energy Efficiency
VIP vacuum insulation panels (U-value ≤0.25 W/m²K)
Eco-mode reduces power consumption by 35%
Key Advantages
✅ Uncompromised Reliability
72-hour thermal buffer during power outages (UL tested)
Auto-defrost cycles prevent ice buildup
✅ Global Compliance
CE/UL/CSA certified
Validated for CDC vaccine storage guidelines
✅ Custom Solutions
Split systems for remote condenser placement
Custom racking for cryoboxes/vials
✅ Sustainability
50% lower carbon footprint vs conventional models
Recyclable polyurethane foam insulation
Technical Innovations
Patented Cooling Architecture
3D forced air circulation (≤1°C chamber gradient)
Copper-aluminum hybrid evaporator coils
Fail-Safe Protection
Dual independent temperature probes
Battery backup for control systems (72hr runtime)
Research-Grade Performance
-86°C recovery time <5min after door opening
10-year chamber corrosion warranty
Why Global Clients Trust Us
Leveraging China’s world-leading compressor manufacturing ecosystem, we deliver:
40% faster cooling ramp rates than EU competitors
5-year compressor warranty – industry-leading coverage
48-hour customization for unique voltage/rack needs
Certifications: ISO 9001, ISO 15225, ENERGY STAR®
Service Commitment
On-site performance validation (IQ/OQ documentation)
Multilingual monitoring software (EN/ES/FR/AR)
⚡ 24/7 global technical hotline with 96hr response
Typical Applications:
mRNA vaccine storage (-70°C ultra-low models)
Biobank genomic sample preservation
Hospital pharmacy refrigerated storage
Field vaccine transport in tropical climates
