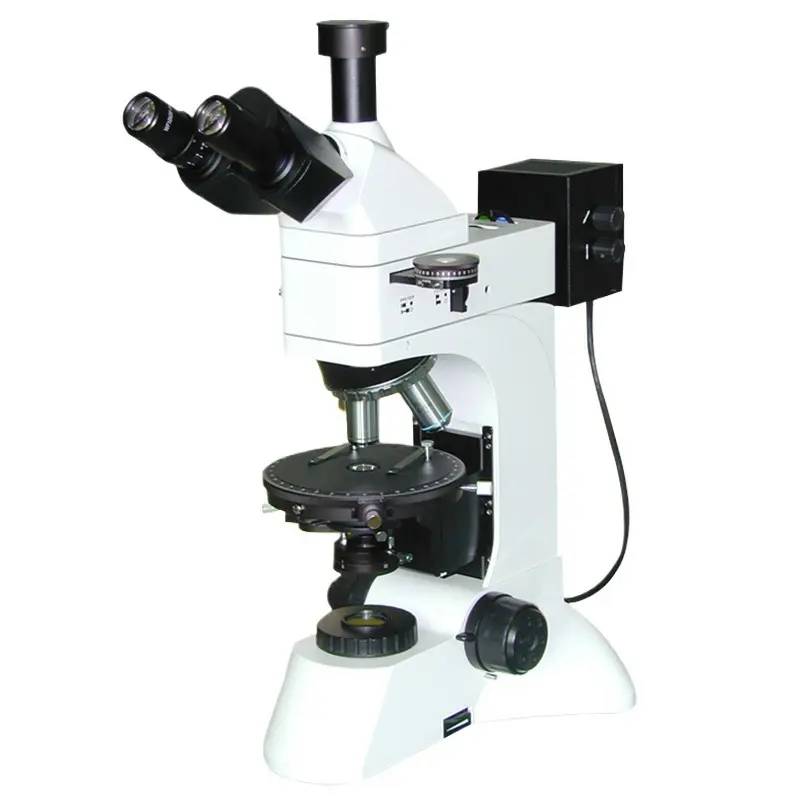

Metallurgical Microscope
Advanced Metallurgical Microscopes for Industrial and Research Applications
Our metallurgical microscopes are engineered for the rigorous examination of opaque, highly reflective, or solid material specimens. Utilizing high-intensity epi-illumination (reflected light), these instruments deliver bright, glare-free vertical illumination through the objective lens onto the sample surface. This enables clear visualization of critical microstructural details – including grain morphology, phase distribution, porosity, inclusions, cracks, and coating integrity – without requiring destructive sample preparation such as thin-sectioning.
Featuring infinity-corrected optical systems with plan apochromatic objectives (5x-100x) and long working distances, our microscopes ensure high-resolution imaging across large, uneven, or heat-treated samples. Standard configurations include brightfield, darkfield, and polarized light modes, with options for Nomarski DIC (Differential Interference Contrast) to enhance topographical contrast.
Robust mechanical stages (XYZ translation), ergonomic heads (trinocular/ binocular), and integrated digital camera ports support seamless documentation and analysis.
These microscopes are indispensable for:
- Quality Control & Failure Analysis (metals, alloys, ceramics)
- Material Research & Development
- Additive Manufacturing Inspection
- Forensic Engineering & Semiconductor Analysis
| Core Optical System | |
| Specifications | Details |
| Magnification | 50X, 100X, 200X, 500X |
| Optical System | Infinity Color-Corrected Semi-Apochromat |
| Eyepiece | High-Eyepoint Widefield Plan Eyepiece PL10X/25mm, Diopter Adjustable |
| Objective | 明场半复消色差金相物镜 (标配): MPLANFL 5X/0.15, WD 19.5mm, 景深 59μm, 分辨率 2.24μm - MPLANFL 10X/0.30, WD 10.9mm, 景深 15μm, 分辨率 1.11μm - MPLANFL 20X/0.50, WD 3.2mm, 景深 4.6μm, 分辨率 0.67μm - MPLANFL 50X/0.80, WD 1.2mm, 景深 1.3μm, 分辨率 0.42μm 明暗场半复消色差金相物镜 (选配): - MPLANFL BD 系列 (5X-100X), 参数同标配但支持暗场 |
| Mechanical & Viewing Modules | |
| Specifications | Details |
| Viewing Head | 30° Inclined, Infinity Trinocular Viewing Head Interpupillary Adjustment 50–76mm Binocular Ratio: 2-Step (Std) / 3-Step (Opt) |
| Nosepiece | 6-Hole Bright/Dark Field Nosepiece with DIC Slot Optional: 5-Hole BD, 6/7-Hole BF Nosepieces with DIC Slot |
| Focusing Mechanism | Low-Position Coaxial Coarse/Fine Focus Coarse Travel 28mm Fine Resolution 0.001mm Anti-Drift Tension Control + Upper Limit Stop |
| Stage | 4" Right-Hand Mechanical Stage, Travel 105×105mm Y-Axis Lock Light Shield + Metal Stage Plate With Glass Stage Plate |
| Illumination Systems | |
| Specifications | Details |
| Reflected Illumination | Bright/Dark Field Reflector Illuminator Adjustable Aperture & Field Diaphragm BF/DF Switching Filter Slot + Polarization Slot |
| Lamp House | 12V 100W Halogen, Pre-centered (Reflection) 12V 100W LED, Pre-centered (Transmission) |
| Transmitted Illumination | Included in Dual-Use Stand |
| Condenser | Swing-Out Achromatic Condenser NA 0.9 Adjustable Aperture Diaphragm + Centrable |
| Filters | Built-in Transmission Filters (LBD, ND6, ND25) Optional: Interference Filters (Reflection) |
| Imaging & Accessories | |
| Specifications | Details |
| Imaging Adapter | 0.5X C-Mount Adapter, Parfocal Optional: 0.35X/0.65X/1X C-Mount Adapters |
| Polarization Kit | Rotatable Polarizer (360°) + Analyzer Slider |
| Microscope Camera | Optional: HDMI Metrology CCD / USB Analysis CCD |
Compliant with international standards (ISO 9022, IEC 61326), our systems offer reliability for demanding industrial environments, laboratories, and academic institutions.
Customizable with motorized stages, measurement software, and automated reporting solutions.
