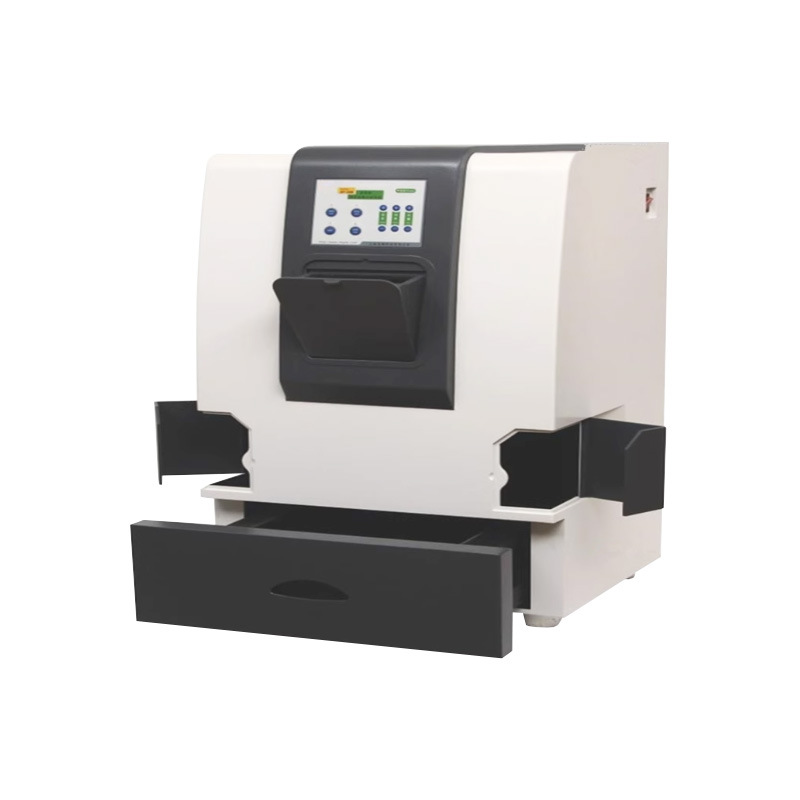

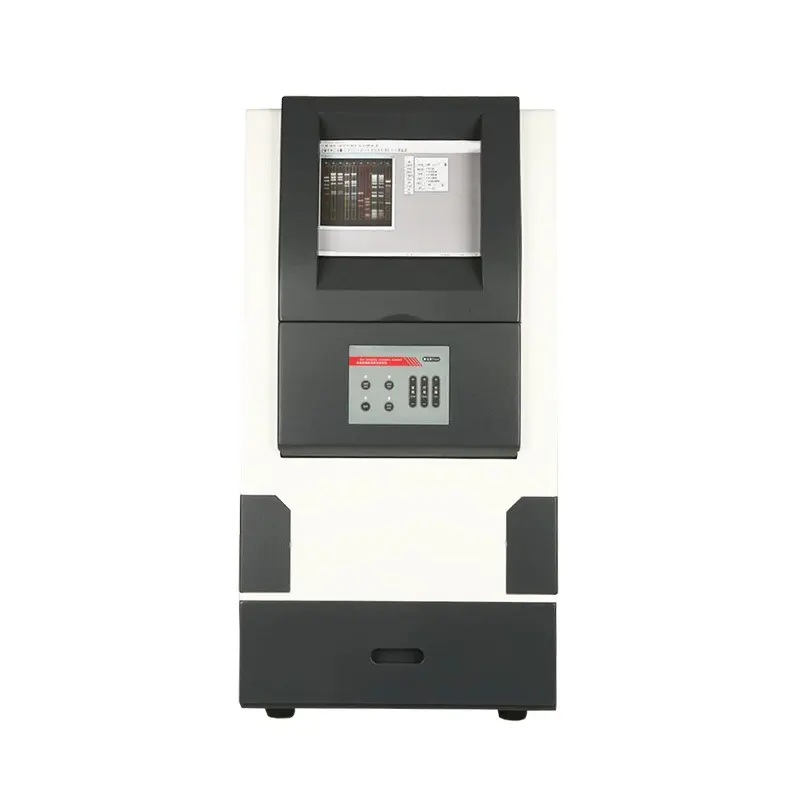

The fully automated gel imaging analysis system is primarily designed for the analysis and research of electrophoretic gel images, hybridization membranes, and similar samples. Featuring fully automated computer control and high programmability, it delivers simple operation and practical utility.
♦ Key Features
- 12-inch Large Touchscreen: Equipped with optimized operation software for simplified image acquisition.
- Multifunctional Control Panel: Touch-sensitive buttons enable straightforward function selection.
- Full Automation: Control zoom, focus, aperture, transillumination UV, and reflection lamps via software or the chassis panel.
- Research-grade CCD: High-definition imaging captures finer details and enables superior analysis of faint bands.
- Real-time Sample Observation: Monitor samples via software or a UV-protected viewing window for enhanced safety and visibility.
- Flexible Image Export: Save images in common formats (TIFF, JPEG, etc.).
- Auto-shutdown Protection: All light sources deactivate automatically after 10 minutes of inactivity to extend lifespan.
- Intelligent Shutdown: Closing the software automatically turns off all lights for safer, more efficient operation.
♦ Technical Specifications
| Parameter |
Specification |
| CCD Chip |
1/2.5-inch; 2592(H)×1944(V), 5 Megapixels (Optional: 3096×2080, 6.4 Megapixels) |
| Dynamic Range |
4.5 OD; 16-bit grayscale; detects <20 pg ethidium bromide (EB)-stained dsDNA |
| Pixel Size |
5.7 μm × 4.28 μm |
| Pixel Binning |
1×1, 2×2, 3×3, 4×4 |
| Lens |
High-transmission motorized lens; 8–48mm; Auto aperture F1:1.2 |
| Exposure Time |
0.294 ms – 2000 ms |
| Sensitivity |
Detects as low as 0.01 ng EB-stained DNA |
| Signal-to-Noise Ratio |
≥56 dB |
| Excitation Light Sources |
Transillumination: 300 nm UV; Epillumination: 254 nm, 365 nm UV |
| Transillumination Area |
UV: 210×250 mm; White light: 210×300 mm |
| Filter |
Standard: 590 nm; Compatible with EB, Sybr®, GoldView®, and most fluorescent dyes |
| Software |
JP-GEL 1D Image Analysis Software |
| Power Supply |
AC 220V, 50/60 Hz |
| Dimensions (H×W×D) |
845 × 420 × 425 mm |
| Weight |
23.5 kg |
