Disintegration Tester

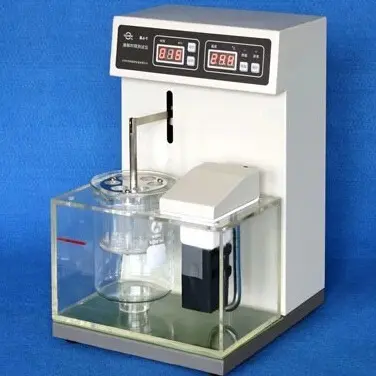

Formal Product Introduction: Export Disintegration Tester
The Export Disintegration Tester is a precision-engineered instrument designed to evaluate the disintegration characteristics of solid oral dosage forms—including tablets, capsules, and granules—in full compliance with international pharmacopoeial standards (USP <701>, EP 2.9.1, JP 17).
This system incorporates a thermostatically controlled water bath (±0.5°C accuracy) maintained between 30–40°C, housing a synchronized basket-rack assembly that oscillates at a regulated frequency (29–32 cycles per minute) and stroke height (53–57 mm). Each of the six transparent tubes allows real-time visual monitoring of sample behavior under standardized test conditions.
Key features include:
- Single beaker with six tubes
- Independent single-channel operation; automatic timed shutdown
- Precise automatic temperature control
- Baskets and suspension rods made of imported stainless steel
- Micro water pump circulation system for uniform bath temperature
- Fully automated intelligent control of temperature, time, and oscillation frequency
- Programmable time parameters; dual display showing preset/real-time values
- Automated operation with self-diagnosis and alarm functions
Technical Specifications:
| Parameter | Specification |
|---|---|
| Number of Liftable Baskets | 1 |
| Glass Tubes per Basket | 6 |
| Beaker Capacity | 1000 ml |
| Oscillation Frequency | 30–32 cycles/min |
| Oscillation Stroke | 55±1 mm |
| Min. Screen Spacing | 25±2 mm |
| Timer Range | 1–900 min |
| Timing Accuracy | ±0.5 min |
| Temperature Range | 20–45℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Heater Power | 500 W |
| Continuous Operation | >24 hours |
| Power Supply | Optional* |
| Total Power Consumption | 600 W |
| Dimensions (L×W×H) | 26×30×42 cm |
| Net Weight | 11 kg |
Export-Optimized Design meeting IP54 protection, CE certification.
Engineered for pharmaceutical quality control laboratories, this instrument guarantees reproducible results, traceable calibration, and adherence to GLP/GMP requirements.
Optional accessories include specialized sinkers, validation kits, and IQ/OQ documentation packages for seamless global deployment.
