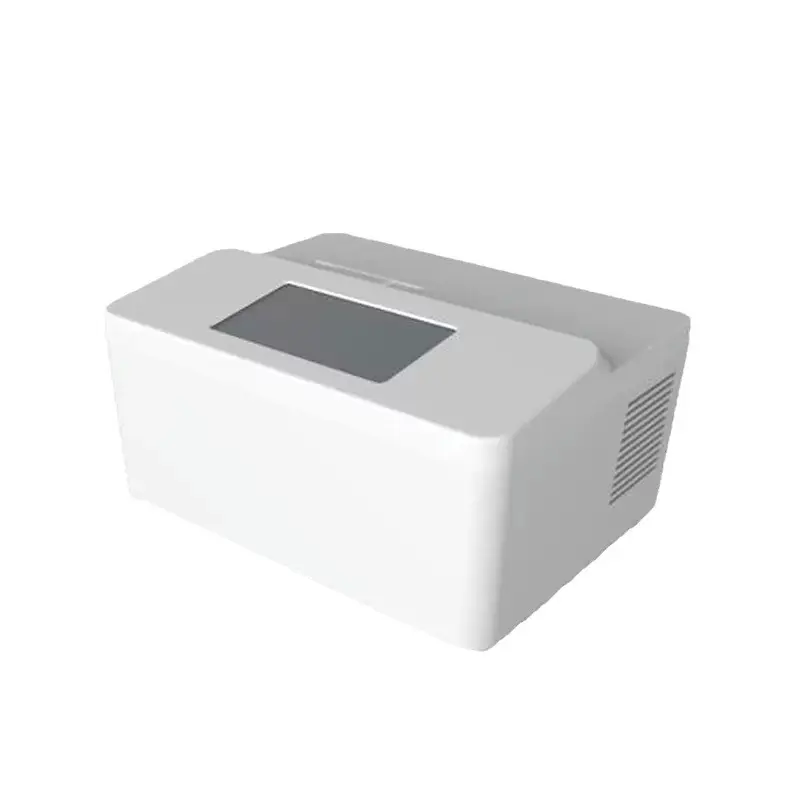

ASFV detector

Our portable ASF Detection Device delivers rapid, reliable results for African Swine Fever Virus (ASFV) in the field or lab. Utilizing advanced [mention core technology briefly, e.g., qPCR, LAMP, or immunoassay], it detects ASFV antigens or nucleic acids within minutes from blood, tissue, or oral fluid samples. Ideal for farms, borders, slaughterhouses, and labs, this user-friendly device enables swift containment decisions, protecting swine herds with lab-quality accuracy anywhere.

Key Features Highlighted :

  • Technical Specifications:
    Sample Volume: 8x0.2ml, Supports 8-Tube Rack
    Applicable Consumables: Common Transparent PCR Consumables, 8x0.2ml Tube Rack, 0.2ml Single Tube
    Reaction System: 5-120ul
    Reaction Mode System Heating/Cooling Module: Imported Semiconductor Peltier Module
    Temperature Control Range: 4°C - 99°C
    Average Rate of Temperature Rise/Fall: ≥2°C/Second
    Temperature Control Accuracy: ≤±0.1°C
    Temperature Uniformity: ≤±0.2°C
    Number of Temperature Control Areas: Multiple Points (2 Points)
    Gradient Number: 0
    Gradient Temperature Range: None
    Number of Gradient Wells: None
    Excitation Source: Maintenance-Free LED
    Excitation Wavelength Range: 400-700nm
    Detection Component: Imported Photoelectric Detector
    Number of Detection Channels: Standard 1 Channel (FAM), High Configuration (Optional) (FAM, VIC)
    Applicable Dyes and Probes: FAM/SYBR Green I, VIC/HEX/CY3 (Optional), ROX/Texas Red (Optional), Cy5, TAMARA (Optional)
    Software Functions: Fluorescent Quantitative PCR System Software; Real-Time Amplification Reaction Curve Function; Display of Specific Sample Real-Time Reaction Curves; Data Analysis Function; Automatic Judgment of Positive/Negative Results; Graphical Display Function.
    Noise: <45 dB
    Screen Size: 7 Inches (HD)
    Touch Screen: Capacitive
    External USB Port: Supports Data Import and Export
    Hot Cover: Automatic Pressure Regulation
    Dimensions: 290(W)*308(L)*130(H)
    Box Dimensions: 75 Long * 38 Wide * 19 High cm
    Net Weight: Approximately 3Kg

    Advanced Portable African Swine Fever Virus (ASFV) Detection System
     African Swine Fever (ASF) poses a catastrophic threat to global swine populations and the pork industry, demanding rapid, accurate, and accessible diagnostic solutions for effective containment. Our state-of-the-art ASFV Detection System is engineered to meet this critical challenge, providing veterinary professionals, government agencies, livestock producers, and diagnostic laboratories with a powerful tool for on-site or laboratory-based surveillance and outbreak management.

    Technology & Principle: This system employs highly sensitive and specific [Specify Core Technology: e.g., Real-Time Quantitative Polymerase Chain Reaction (qPCR), Loop-Mediated Isothermal Amplification (LAMP), or advanced Lateral Flow Immunoassay (LFIA)] to detect the presence of ASFV nucleic acids or antigens directly from a variety of field-relevant samples. The optimized assays target conserved genomic regions or specific proteins of ASFV, ensuring reliable detection of diverse strains.

    Key Features & Advantages:

    • Exceptional Performance:
      High Sensitivity & Specificity: Detects ASFV at very low viral loads, minimizing false negatives, with specificity designed to avoid cross-reactivity with other swine pathogens.
    • Rapid Turnaround Time: Delivers definitive results typically within [Specify Time Range: e.g., 15-60 minutes], drastically faster than traditional lab methods.
    • Quantitative/Qualitative Options: [Specify if applicable, e.g., qPCR models offer quantitative viral load data; LAMP/LFIA typically qualitative].
    • Unmatched Convenience & Accessibility:
      True Portability: Compact, rugged, and battery-operated design enables reliable testing directly at the point of need – farms, borders, markets, slaughterhouses, or remote areas.
      Simplified Workflow: Intuitive interface and minimal sample preparation requirements. Results are often displayed clearly on an integrated screen or via a companion app.
      Minimal Training Required: Designed for ease of use by personnel with appropriate technical background.
    • Versatile Sample Compatibility: Validated for use with:
      • Whole blood / Serum
      • Tissue homogenates (spleen, lymph nodes, etc.)
      • Oral / Rectal fluids
      • Environmental swabs (for monitoring)
    • Robust Data Management: Integrated software facilitates sample tracking, result recording, report generation, and data export for traceability and regulatory compliance.
    • Compliance & Quality: Assays and instrumentation are developed and manufactured under stringent quality control systems. [Mention if applicable: e.g., CE-IVD marked, compliant with OIE guidelines, validated against international reference standards].

    Applications:

    • Early Outbreak Detection & Confirmation: Rapidly identify ASF outbreaks for immediate quarantine and control measures.
    • Surveillance Programs: Monitor swine populations (domestic & wild boar), borders, and high-risk areas.
    • Movement Certification: Test animals prior to transport or sale.
    • Slaughterhouse & Market Screening: Ensure food safety and prevent contaminated meat entering the chain.
    • Diagnostic Laboratory Support: High-throughput or confirmatory testing.
    • Wild Boar Monitoring: Essential for tracking ASF in reservoir populations.

    Value Proposition: This ASFV Detection System empowers users to make critical biosecurity decisions in real-time. By enabling rapid, accurate, and accessible diagnosis, it significantly reduces the time-to-action during outbreaks, minimizes economic losses, protects valuable breeding stock, enhances food security, and supports international trade by facilitating disease-free certification. It is an indispensable tool for modern ASF control strategies.

    Target Audience:

    • Government Veterinary Services & Regulatory Agencies
    • Large-Scale Swine Production Companies & Integrators
    • Veterinary Diagnostic Laboratories (Public & Private)
    • Veterinary Practitioners
    • Livestock Transport & Trading Companies
    • Slaughterhouses & Meat Processing Plants
    • Wildlife Management Authorities
    • Border Control & Quarantine Stations

    Safety Note: Always follow appropriate biosafety protocols when handling potentially infected samples.

    [MGT] - Delivering Innovative Solutions for Animal Health Diagnostics.

    Contact Us: For detailed specifications, validation data, pricing, and support information.
